Industrial Fans
Centrifugal, axial, portable and wall fans moving up to 90,000 m³ of air an hour.
- Air flow
- Up to 90,075 m³/h
- Air pressure
- Up to 15,034 Pa
- Power
- 180 W – 410 kW
- Material
- SS400 steel or SUS 304

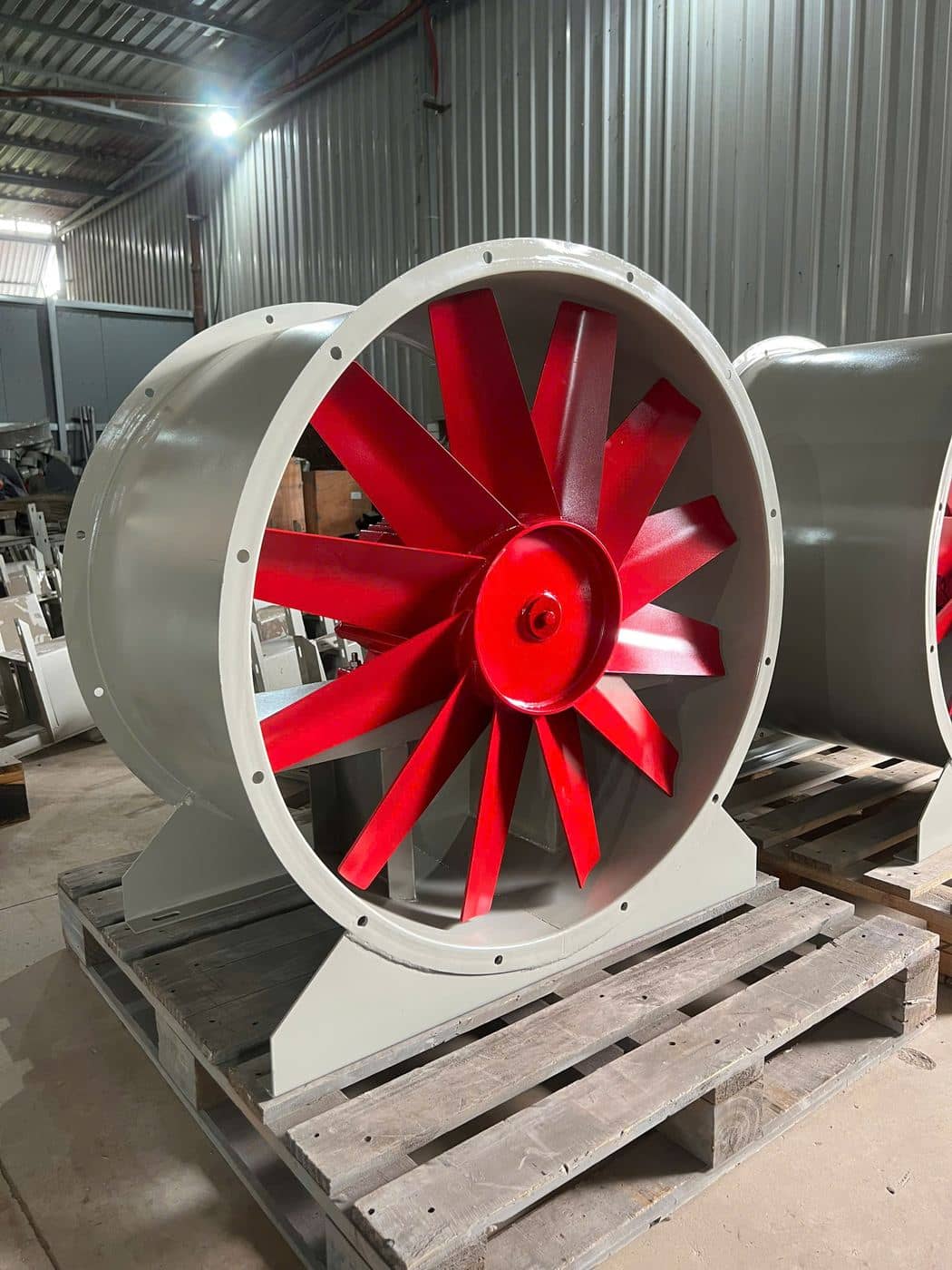

Axial fan PLAX 204 in our workshop

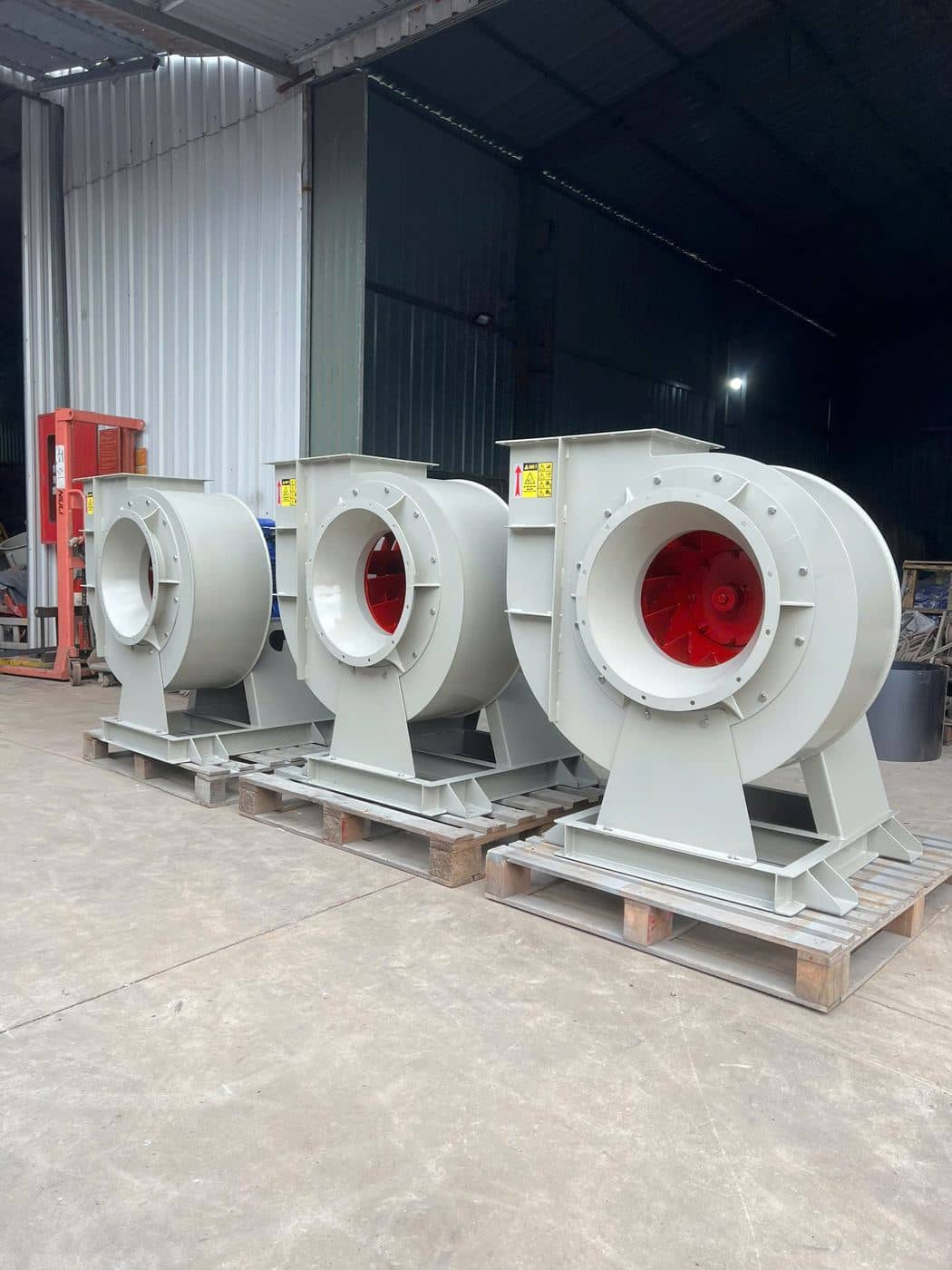

Centrifugal fans ready to ship
6 models
Six fan families for ventilation, smoke extraction, forced draught and cooling. Housings are rolled and welded from SS400 steel or SUS 304 stainless, impellers are balanced in the factory, and every fan can be built for direct or belt drive.
Centrifugal Fan PLCF 101 — Forward-Curved BladesPLCF-101 · 650 – 57,600 m³/h
Centrifugal Fan PLCF 121 — Heavy-Duty Flat BladesPLCF-121 · 400 – 80,000 m³/h
Centrifugal Fan PLCF 152 — High PressurePLCF-152 · 292 – 63,305 m³/h
Axial Fan PLAX 204PLAX-204 · 3,900 – 90,075 m³/h
Portable Fan PLPF — 1.5–2 m BladesPLPF · 41,500 – 80,200 m³/h
Square Ventilation Fan PLQFPLQF · 5,000 – 44,500 m³/h
Compare models
| Model | Power | Speed | Voltage | Air Pressure | Air Flow | Drive | Material |
|---|---|---|---|---|---|---|---|
| PLCF-101 | 0.25 – 55 kW | 500 – 2,800 RPM | 380V, 3-phase | 210 – 2,960 Pa | 650 – 57,600 m³/h | Direct / Belt drive | SS400 steel, SUS 304 |
| PLCF-121 | 0.37 – 37 kW | 725 – 2,800 RPM | 380V, 3-phase | 120 – 3,187 Pa | 400 – 80,000 m³/h | Direct / Belt drive | SS400 steel, SUS 304 |
| PLCF-152 | 0.75 – 410 kW | 960 – 2,800 RPM | 380V, 3-phase | 1,308 – 15,034 Pa | 292 – 63,305 m³/h | Direct / Belt drive | SS400 steel, SUS 304 |
| PLAX-204 | 0.25 – 22 kW | 960 – 2,900 RPM | 380V, 3-phase | 80 – 877 Pa | 3,900 – 90,075 m³/h | Direct / Belt drive | SS400 steel, SUS 304 |
| PLPF | 450 – 550 W | 0 – 400 RPM | 220V, single phase | — | 41,500 – 80,200 m³/h | — | Aluminium alloy blades, steel frame |
| PLQF | 180 – 1,100 W | — | 380V, 3-phase | — | 5,000 – 44,500 m³/h | — | Aluminium / stainless steel |
Made in our factory
About the factoryAxial fan PLAX 204
PLCF 121 batch, ready to ship

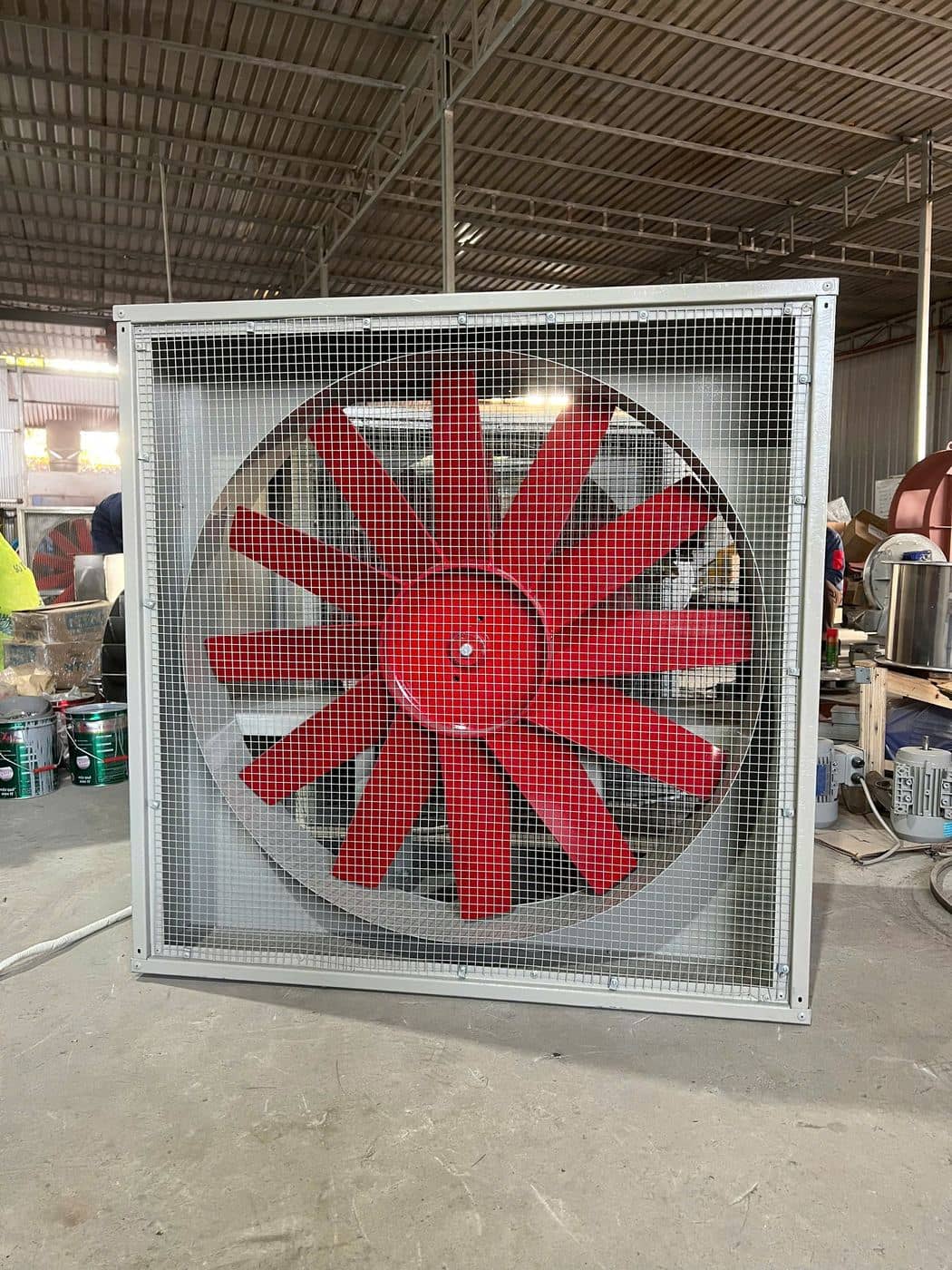

Box-type axial fan

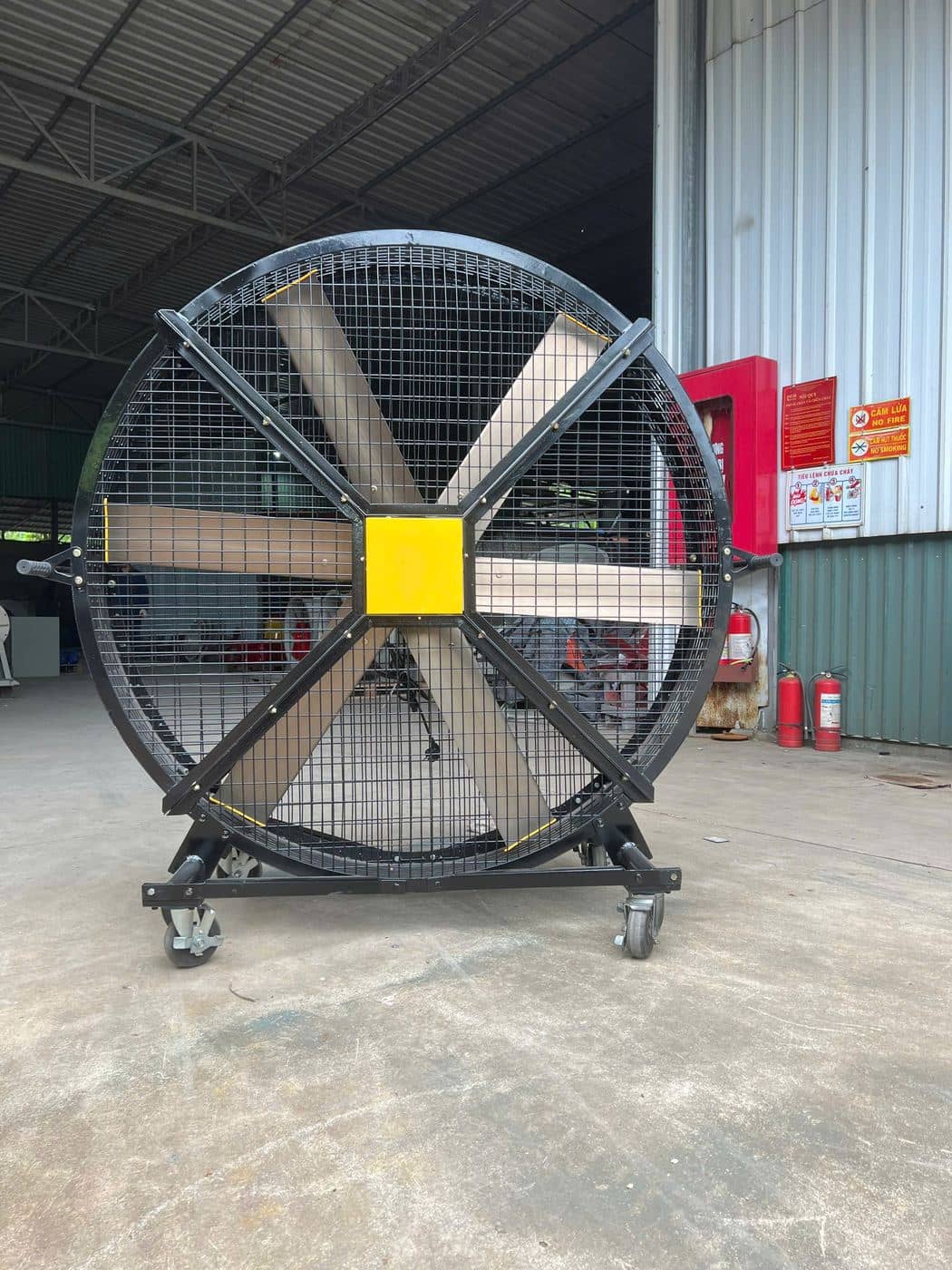

Portable fan PLPF
Other product lines
Concrete Mixers10 modelsDrum mixers from 250 to 500 litres, built to your colour, engine and logo.
Stirrup Bending Machines2 modelsFeed, bend and cut 6–10 mm rebar into finished stirrups from a touchscreen.
Rice Transplanters4 modelsFour to six rows at a time, up to 1,200 m² an hour, light enough for one person.
Paddy Threshers3 modelsFrom 500 to 2,700 kg of paddy an hour, with at least 98% of the grain threshed.
Wheelbarrows7 models70 to 120 litre trays in steel or PP plastic, on solid or pneumatic wheels.
Engines & Motors3 modelsElectric motors, GP160/GP200 gasoline and CAOFONG diesel engines for our machines.
Vikyno Diesel Engines9 modelsVietnamese-made Vikyno diesels from 7 to 36.5 Hp, air or water cooled.
Ask for a price
Tell us the models, quantities and your destination port. Our sales team replies within 24 hours with an FOB or CIF quote.
