Stirrup Bending Machines
Feed, bend and cut 6–10 mm rebar into finished stirrups from a touchscreen.
- Steel diameter
- 6 – 10 mm, plain or deformed
- Output
- 14 – 15 stirrups/min
- Stirrup size
- Up to 1,200 mm
- Power
- 220V single phase
2 models
Two versions of one automatic machine. The normal-motor model turns out 14–15 stirrups a minute; the servo model with PLC control reaches stirrups up to 1,200 mm and stops itself when the steel runs out.
Compare models
| Model | Steel Diameter | Steel Type | Stirrup Shapes | Min Stirrup Size | Max Stirrup Size | Power Supply | Control | Weight | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|

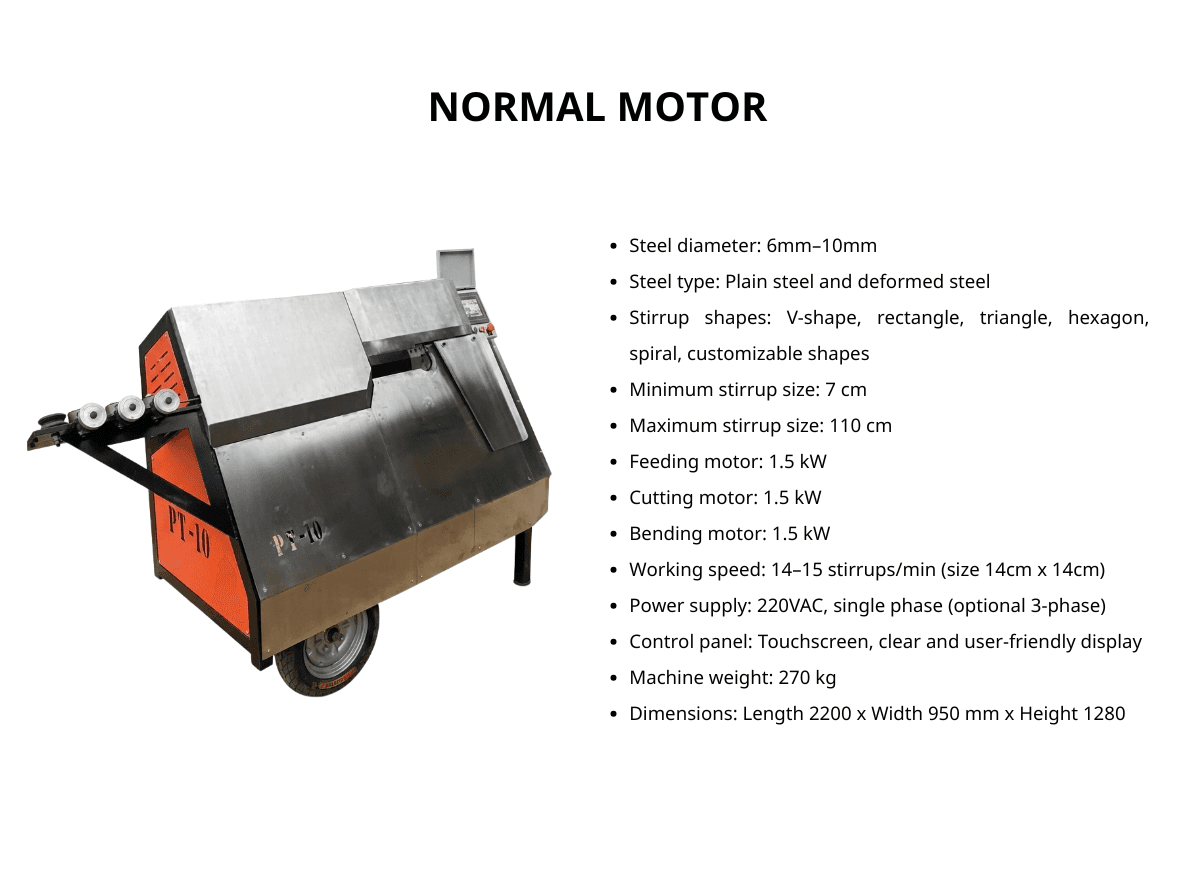

| SBM-NORMAL | 6mm – 10mm | Plain steel and deformed steel | V, rectangle, triangle, hexagon, spiral, custom | 7 cm | 110 cm | 220VAC, single phase (optional 3-phase) | Touchscreen panel | 270 kg | 2200 × 950 × 1280 mm |

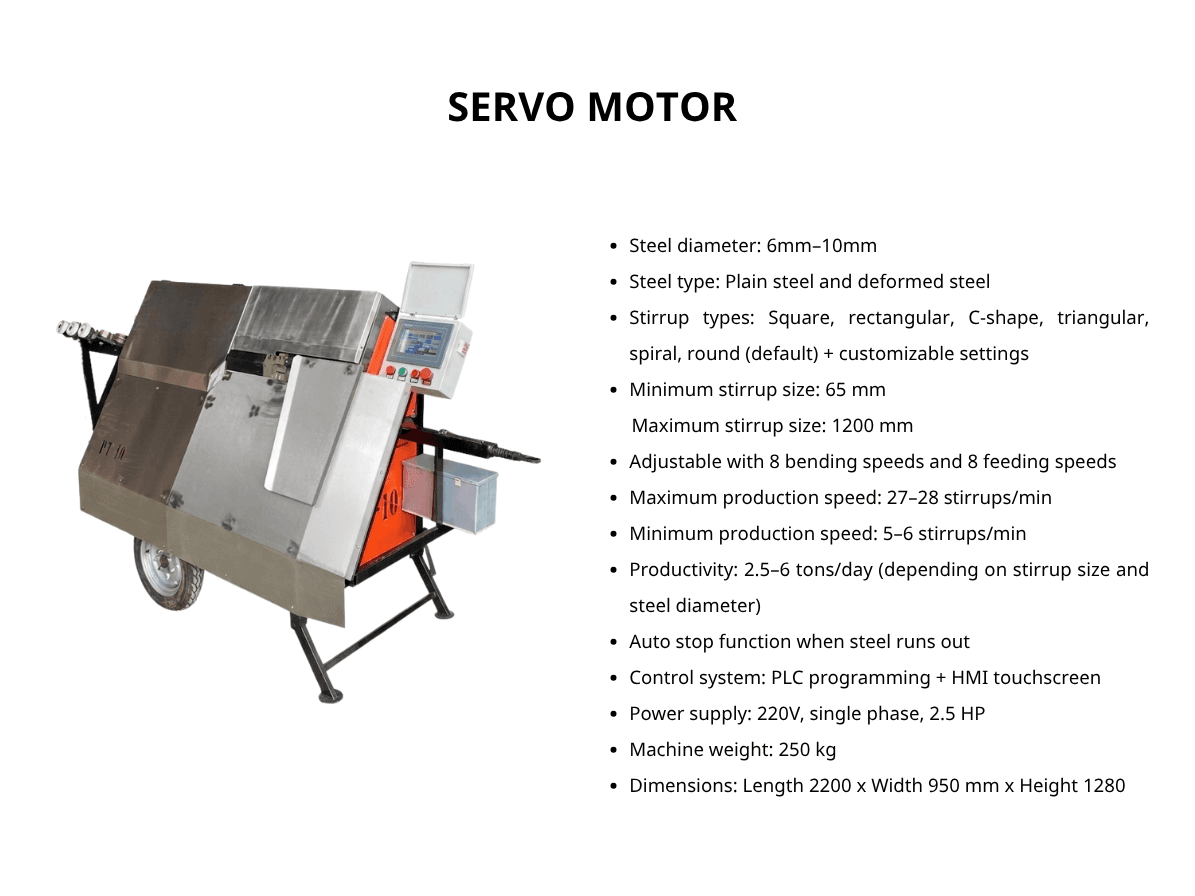

| SBM-SERVO | 6mm – 10mm | Plain steel and deformed steel | Square, rectangle, C-shape, triangular, spiral, round, custom | 55 mm | 1200 mm | 220V, single phase | PLC programming + HMI touchscreen | 250 kg | 2200 × 950 × 1280 mm |
Made in our factory
About the factory

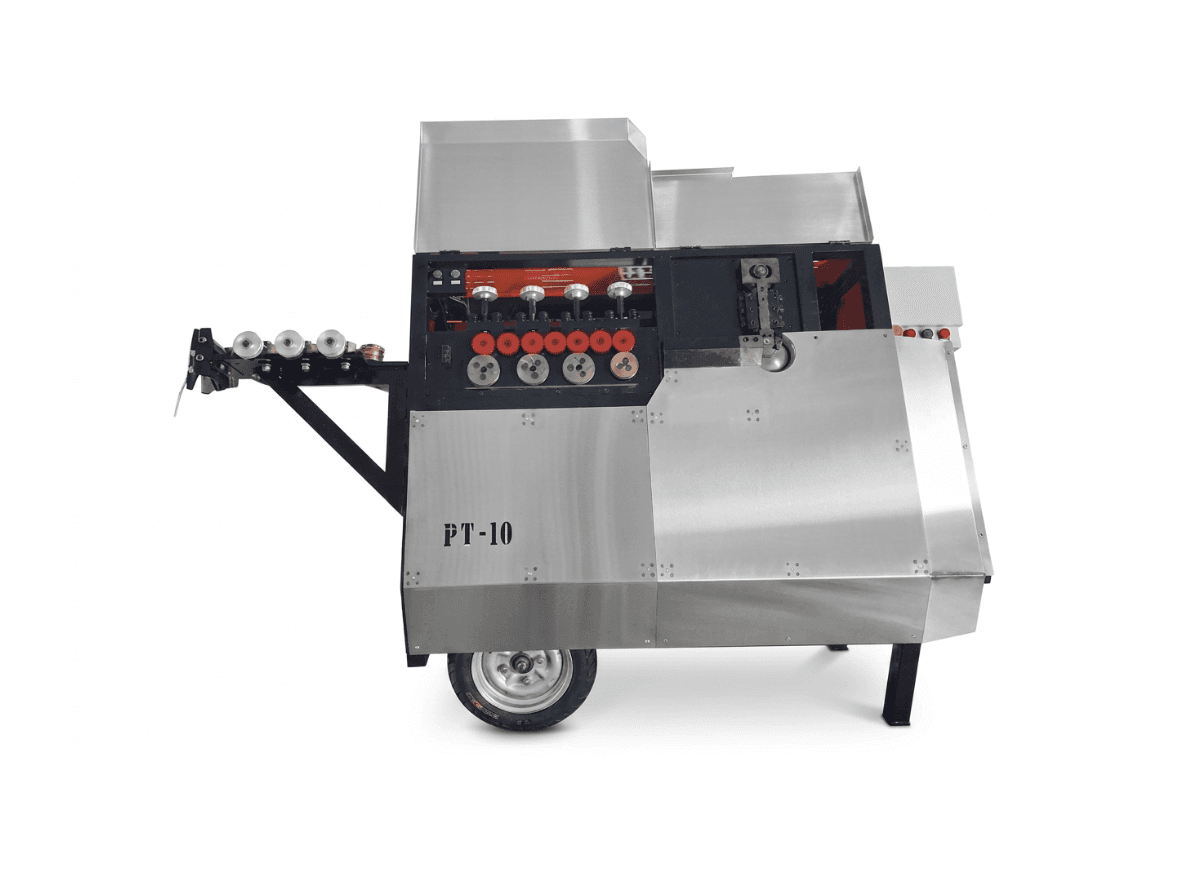

Feeding rollers

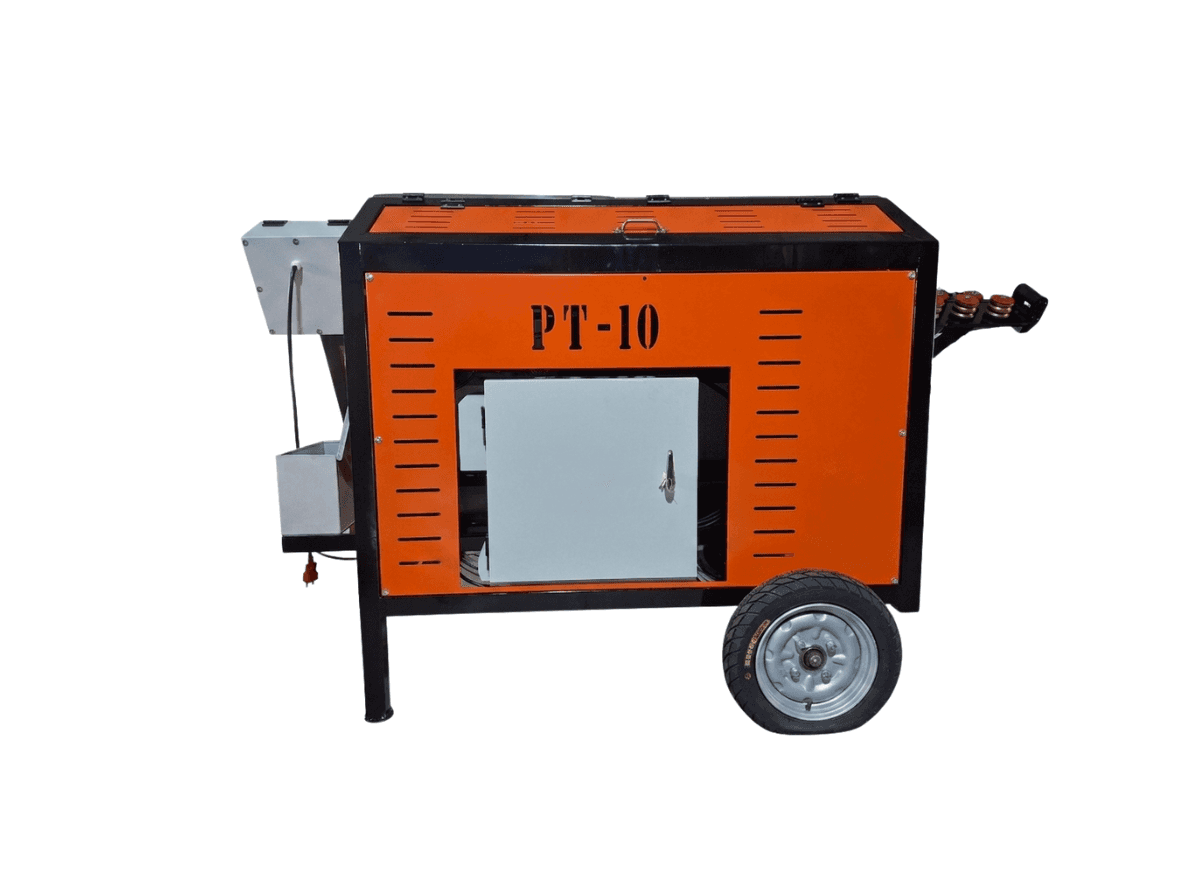

Bending head

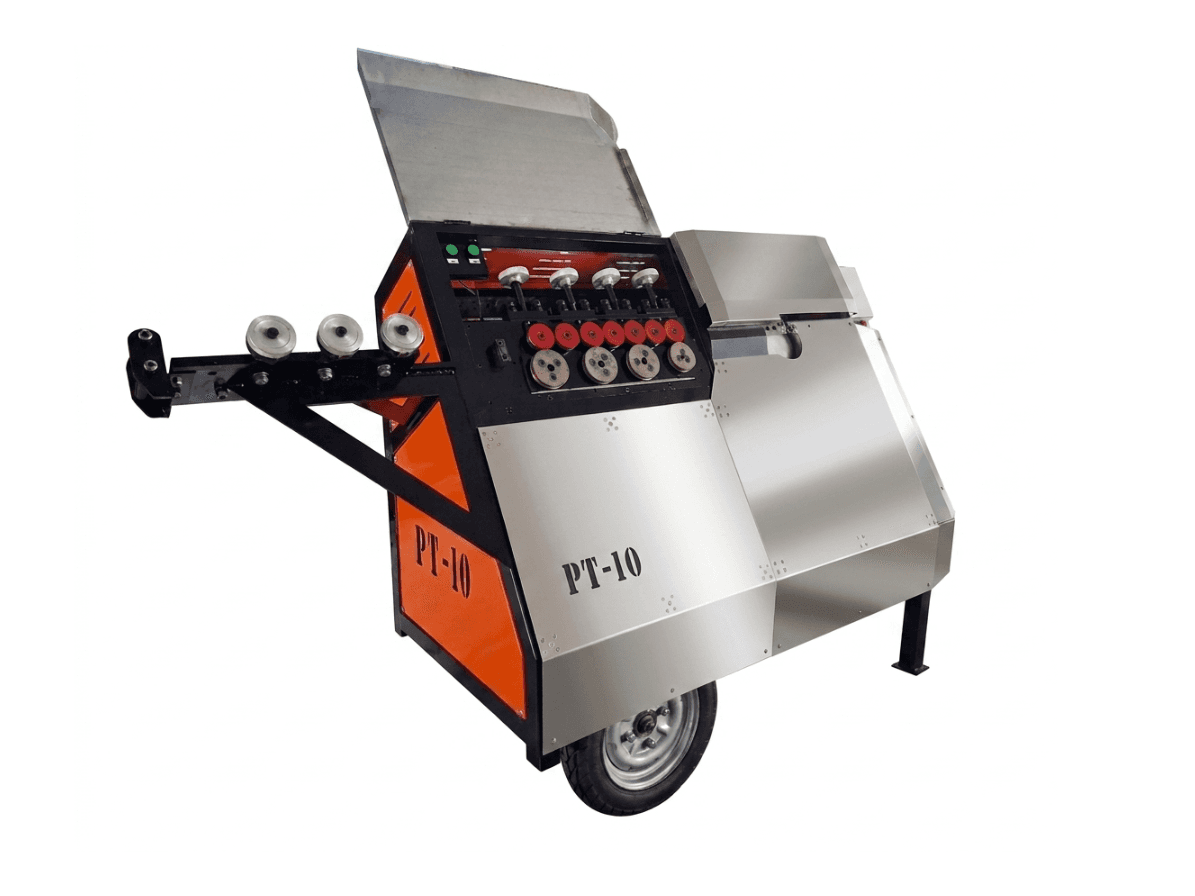

Servo model, control panel

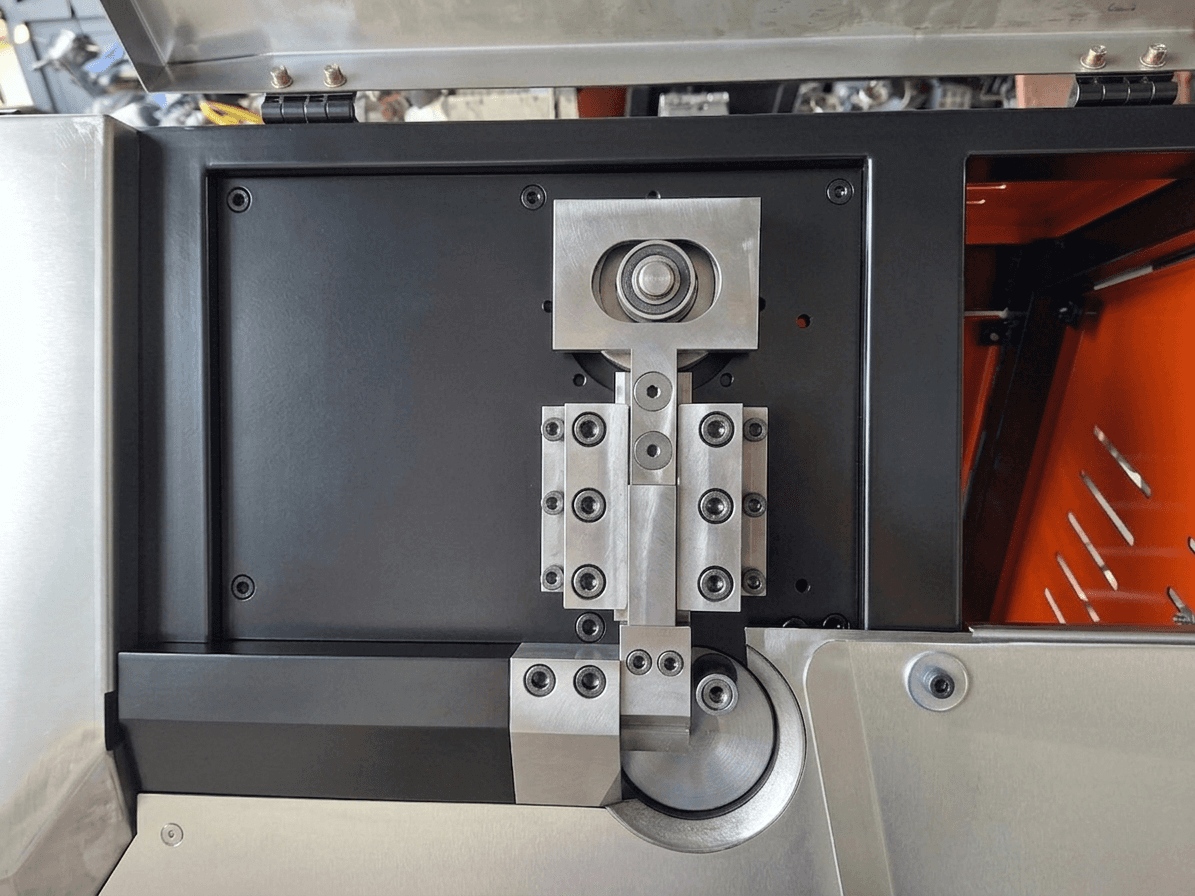

Servo model, side view
